Chemical Tank Liner Installation

At TK Industrial Services Inc., we help industrial facilities restore failing assets and protect them against aggressive chemical exposure, corrosion, and premature deterioration. This chemical tank liner installation project is a strong example of how the right surface preparation and lining system can extend equipment life and improve long-term reliability.

Project Overview

This vessel was in severely deteriorated condition, with extensive corrosion and heavy scale buildup compromising the integrity of this vessel. The tank required a complete restoration approach to remove contamination, stabilize the substrate, and prepare it for a high-performance protective lining system.

Our team completed the full rehabilitation process, from abrasive blasting through final lining application, to deliver a chemically resistant, durable interior system designed for demanding industrial service.

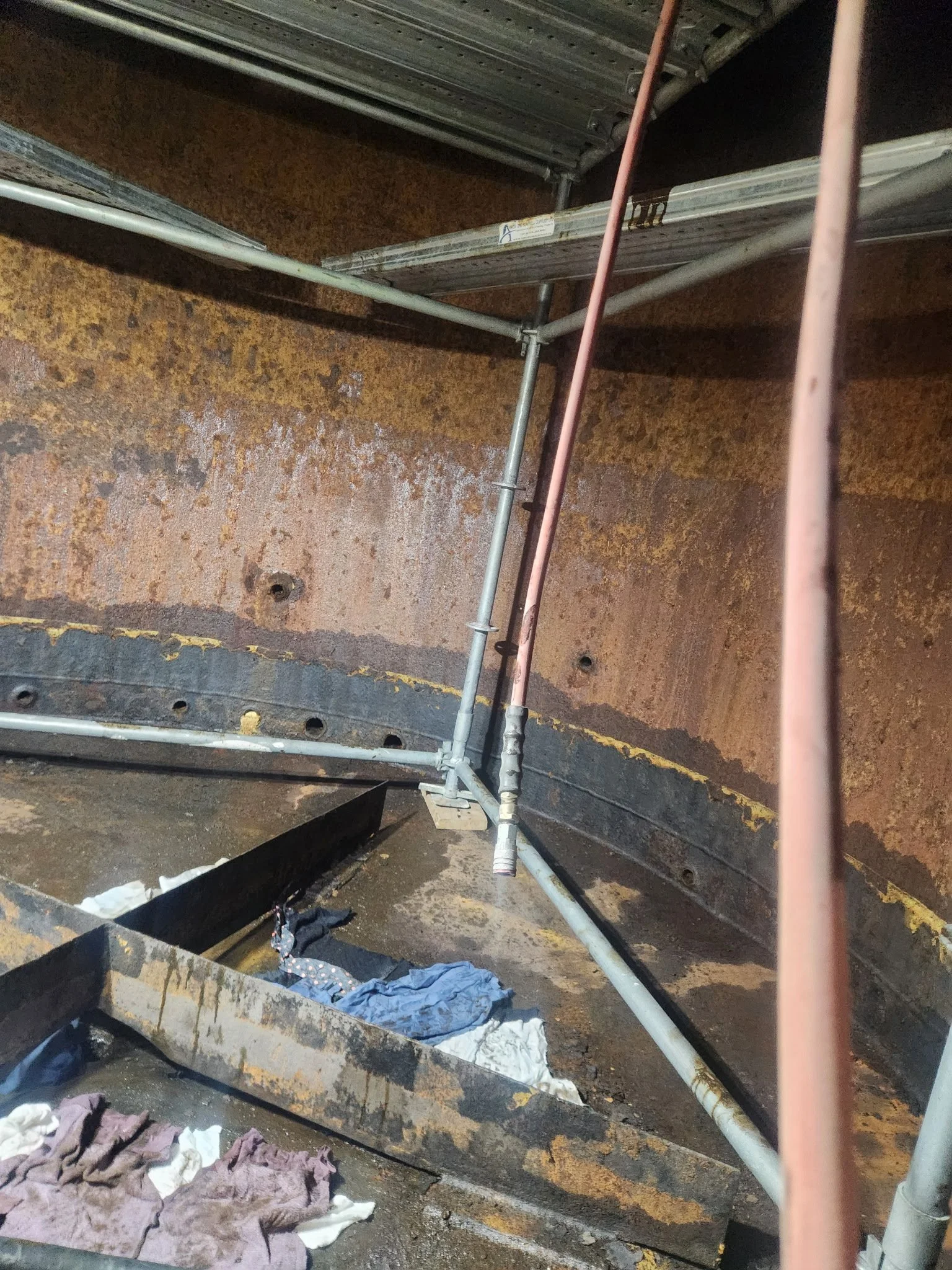

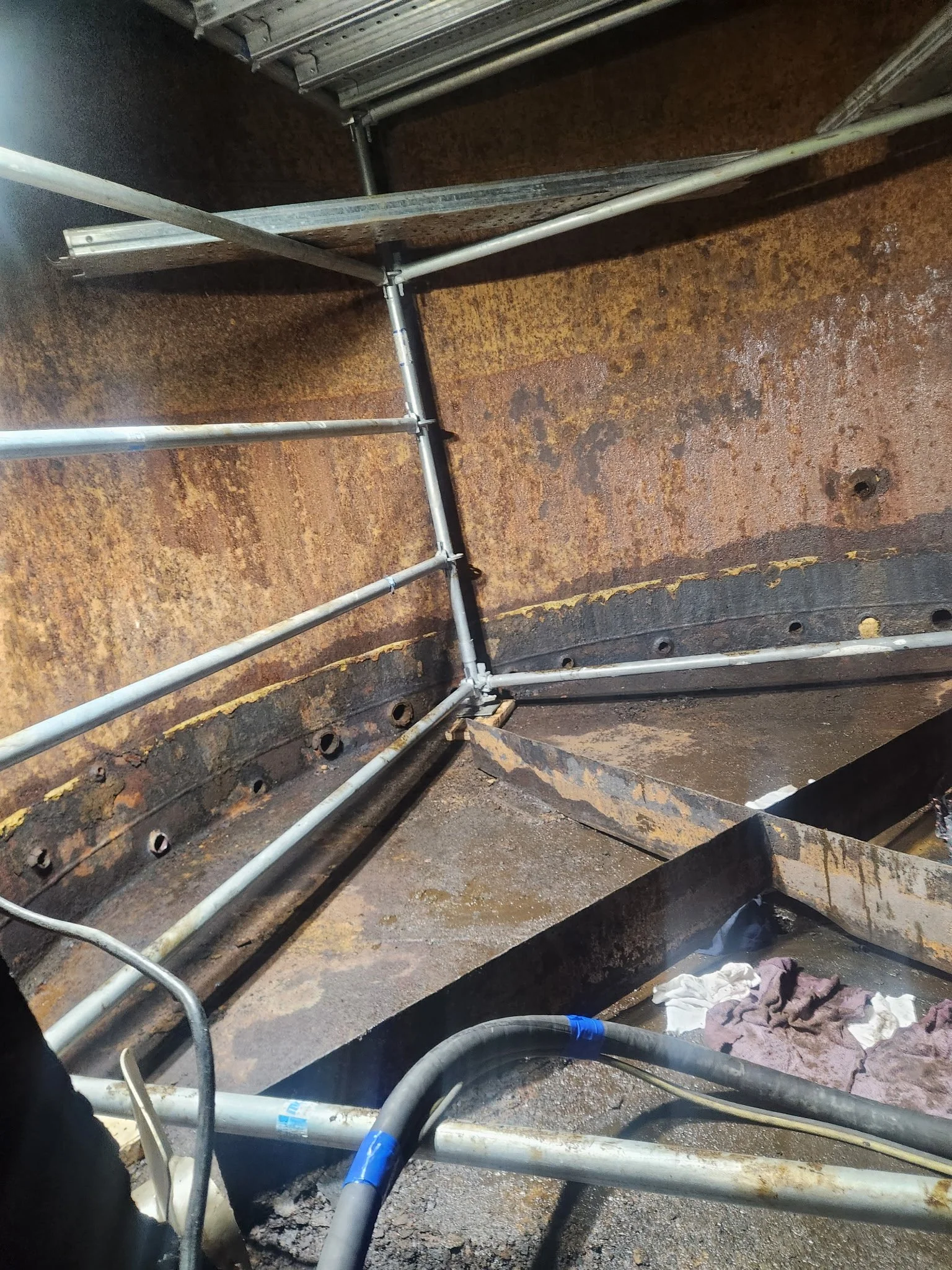

Existing Tank Condition

Before restoration, the vessel was experiencing:

• Extreme internal corrosion

• Significant scale buildup

• Surface contamination

• Loss of protective integrity

Corrosion and scale buildup inside chemical storage or process vessels can quickly lead to
accelerated deterioration, contamination risks, and costly downtime if left untreated. Proper remediation requires more than
simply coating over the problem — it requires full surface preparation and a lining system engineered for the
environment.

Scope of Work Completed

TK Industrial Services Inc. carried out the following work on this project:

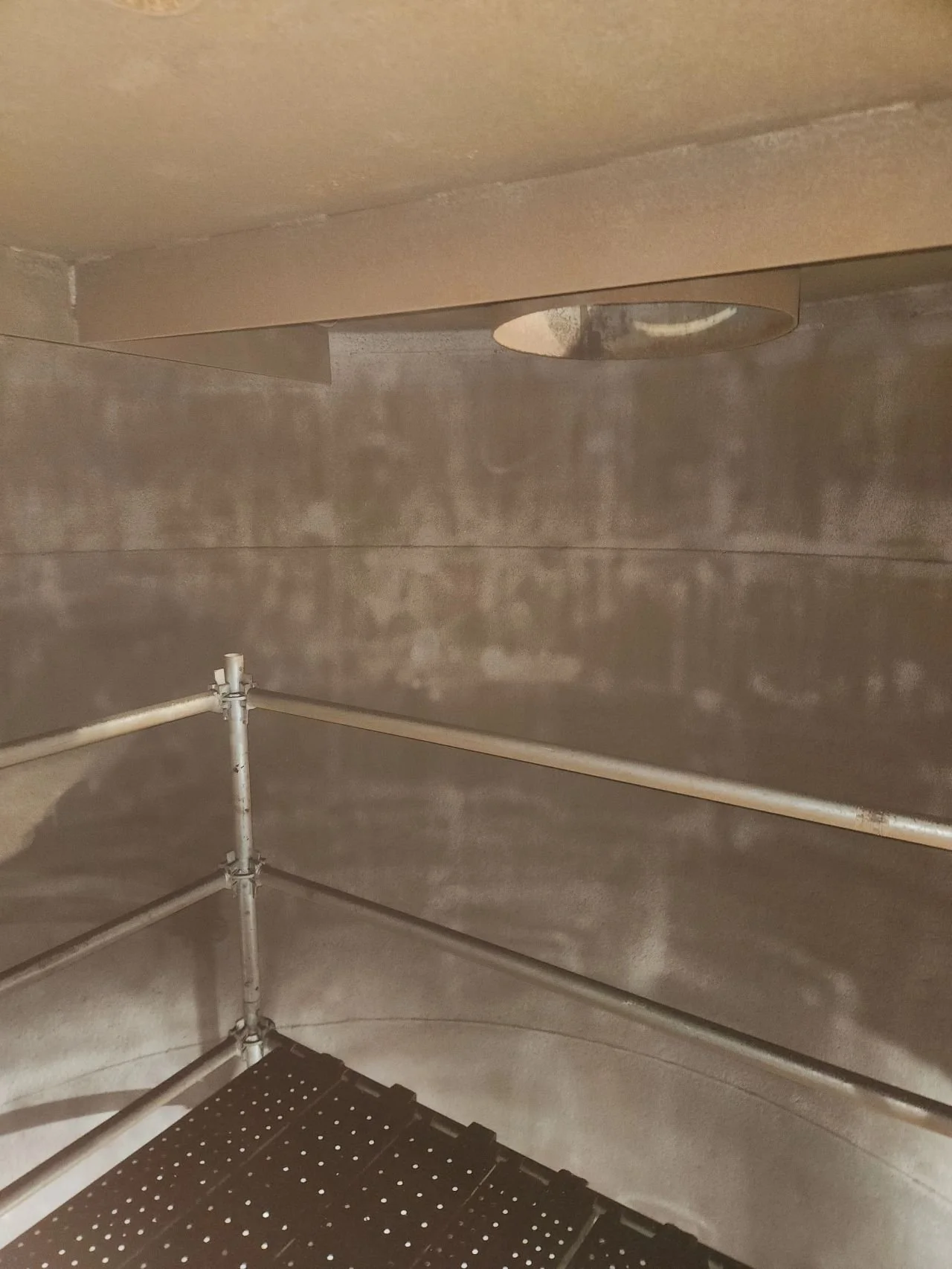

1. Abrasive Blasting

   We performed a full abrasive blast of the vessel interior to remove all corrosion, rust, scale, and
   contaminants from the substrate. This process brought the surface down to clean bare metal
   and created the proper anchor profile necessary for lining adhesion.

   Proper blast preparation is critical to the long-term success of any tank lining system. Without it,
   even premium coating products can fail prematurely

2. Surface Preparation for Adhesion

   Once the substrate was cleaned to specification, we ensured the surface profile met the requirements for
   optimal bonding of the lining system. This step is essential for achieving strong adhesion and long-term
   coating performance in aggressive chemical environments.

3. Vinyl Ester Primer Application

   After preparation, we applied Ceilcote 380 Primer, a vinyl ester primer designed to promote adhesion and
   support the overall performance of the lining system.

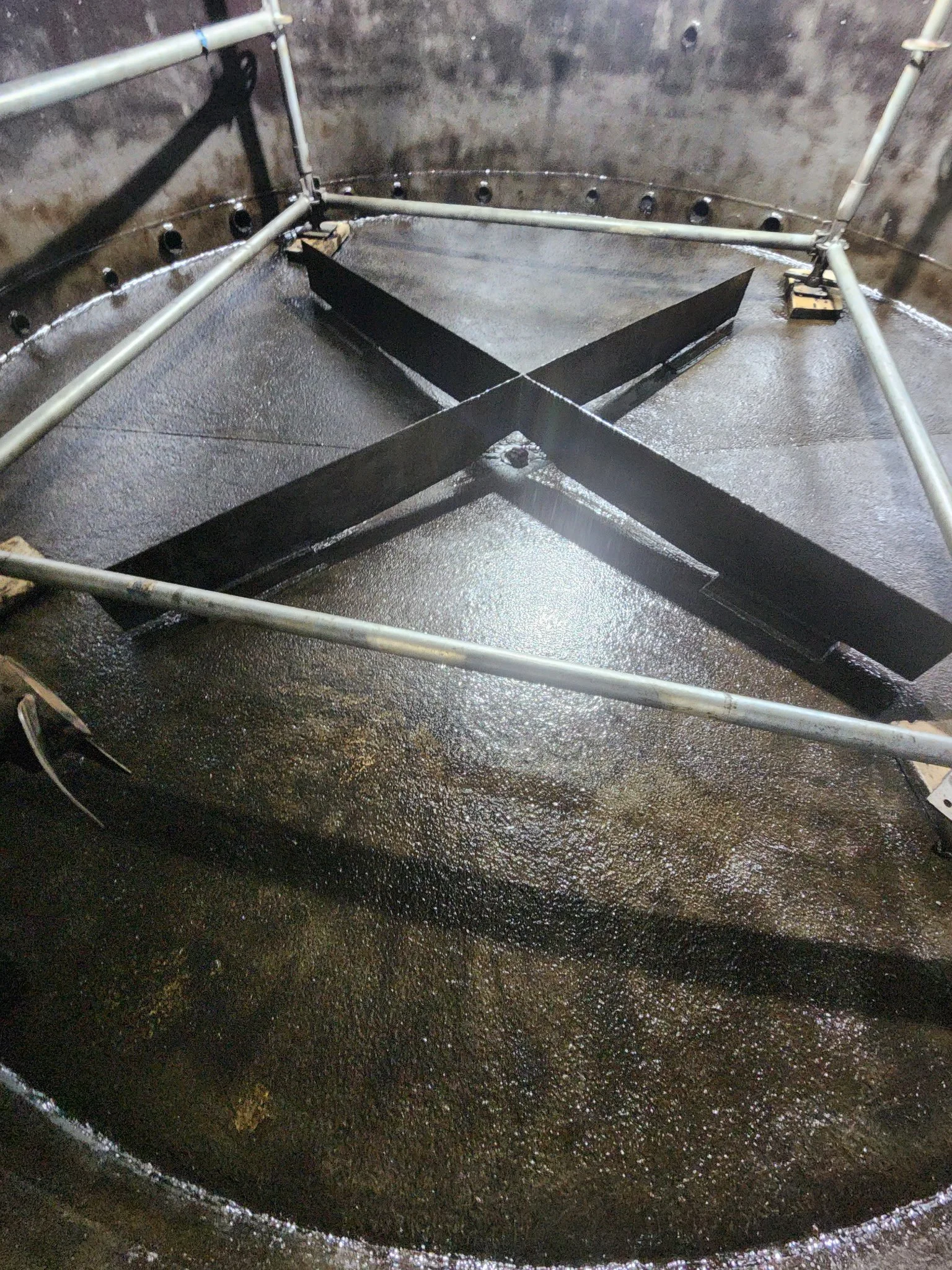

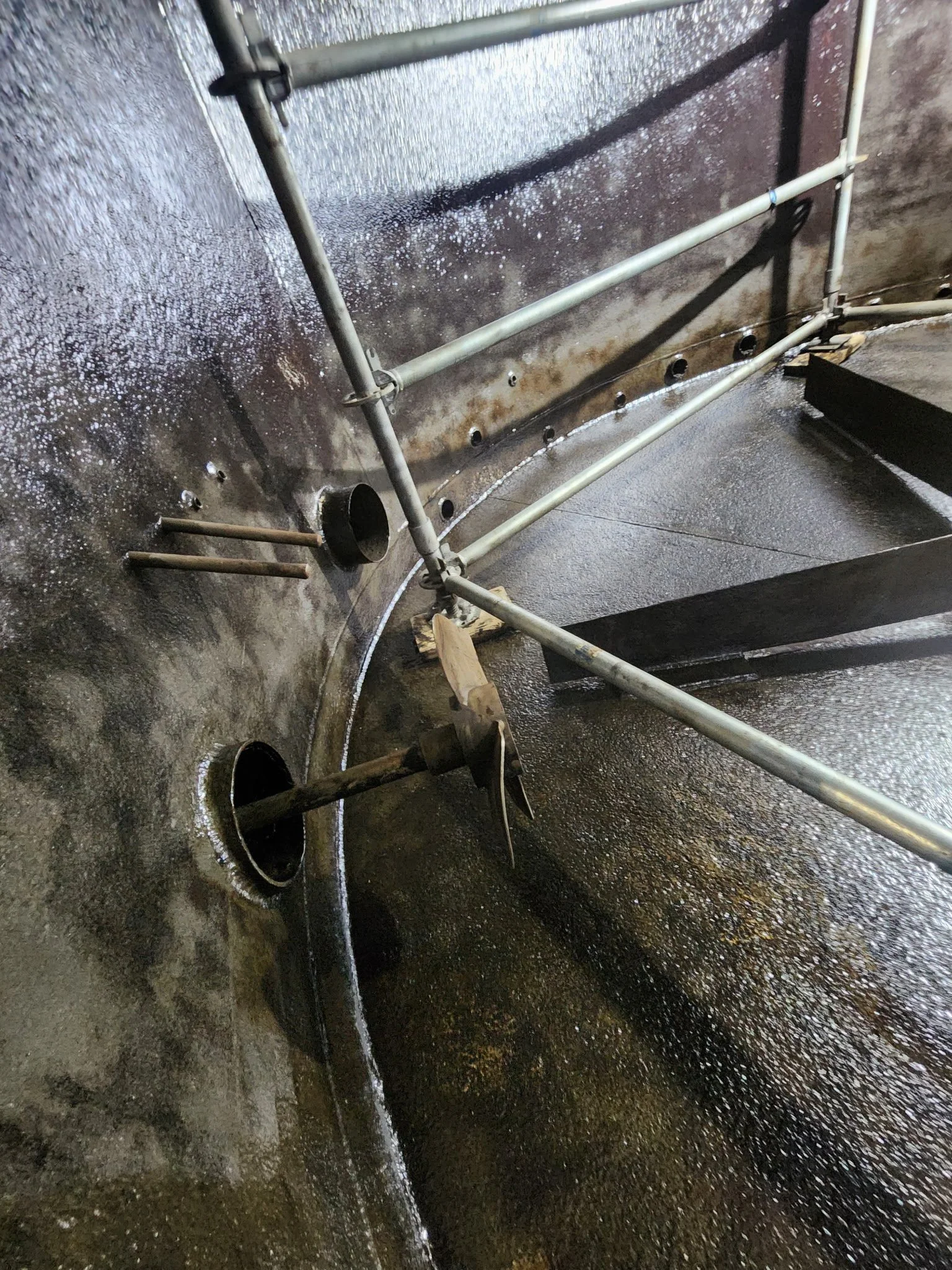

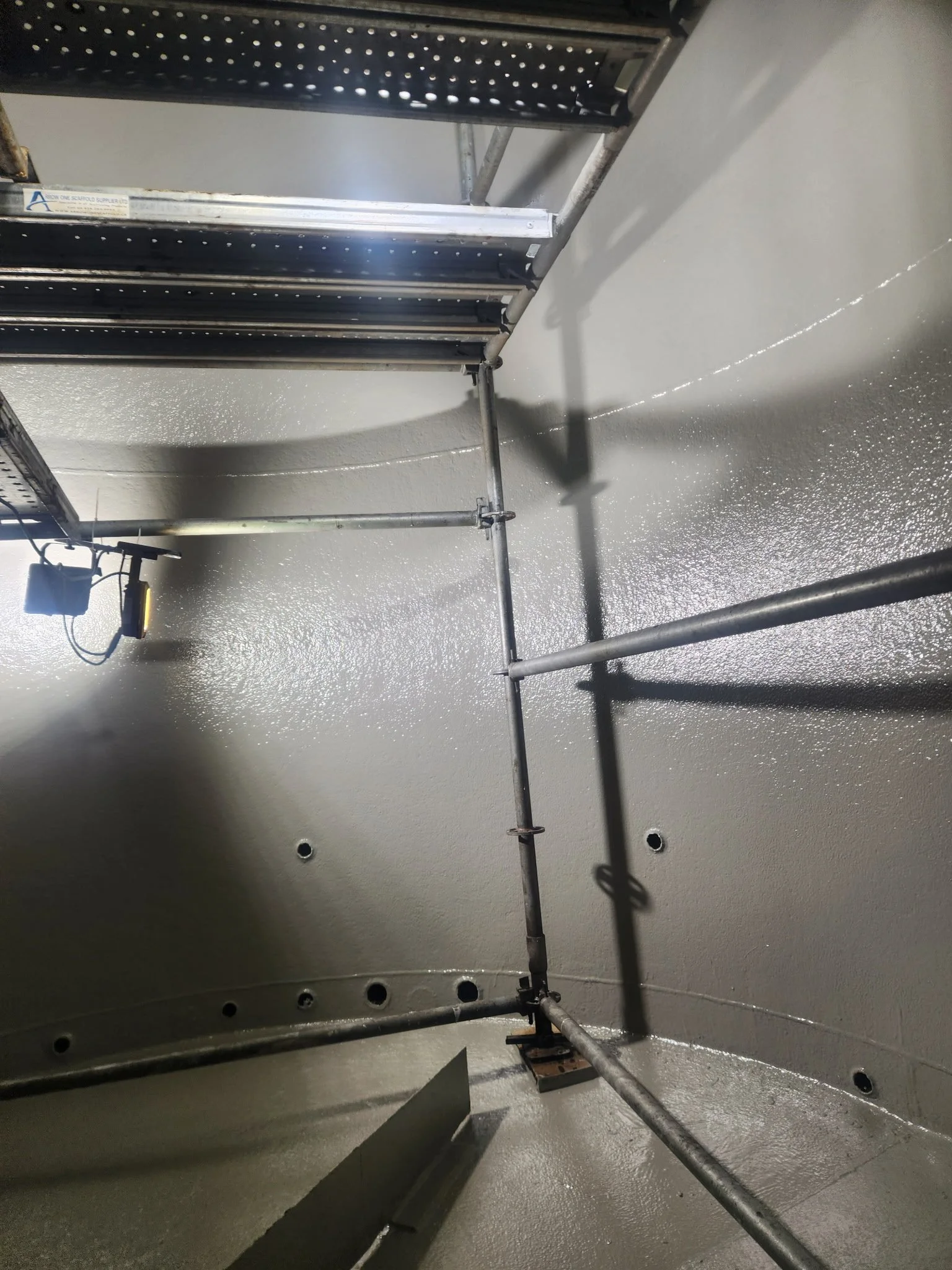

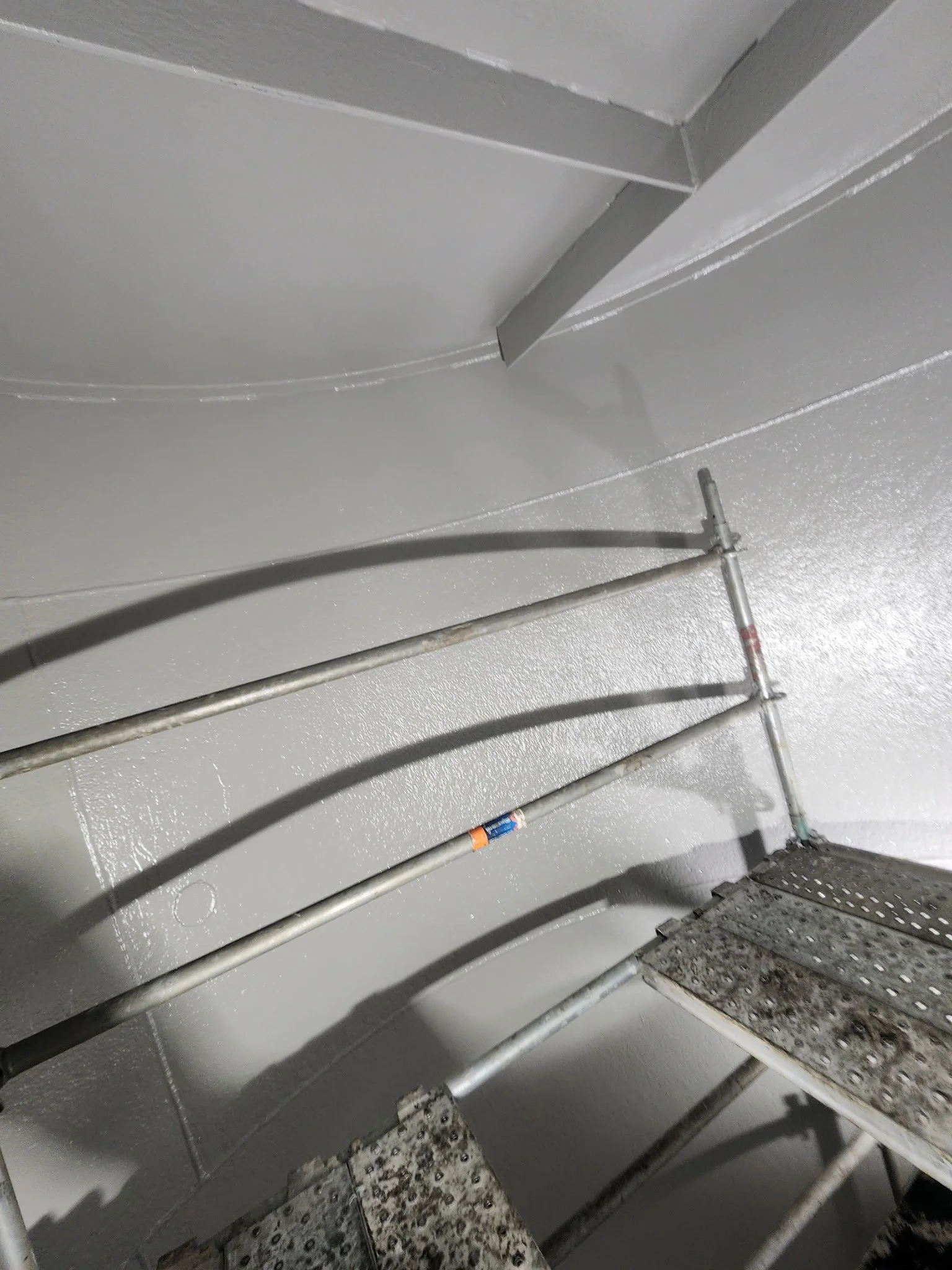

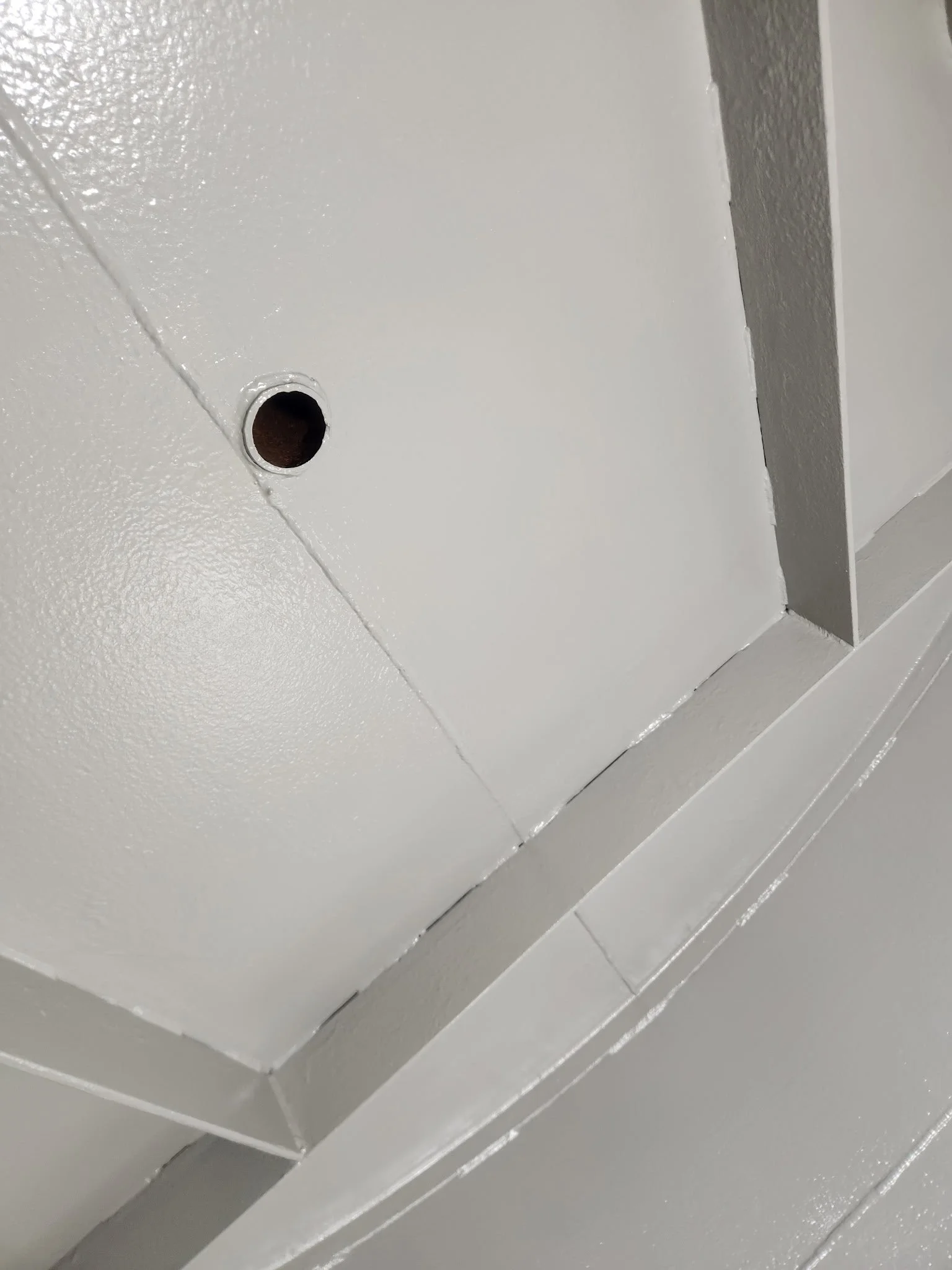

4. Installation of Flake-Filled Novolac Lining System

   We then installed two coats of Flakeline 232, a vinyl ester fiberglass flake-filled novolac lining system engineered to
   provide:

   • Superior chemical resistance

   • Excellent barrier protection

   • Increased durability in harsh service environments

   • Long-term asset protection for industrial vessels and tanks

Why This Project Matters

Chemical tanks and process vessels are constantly exposed to harsh environments that can break down unprotected or failing surfaces over time. Once corrosion and buildup begin to advance, the risk of structural degradation, leakage, contamination, and unplanned downtime increases significantly.

By completing a full abrasive blast and installing a properly specified vinyl ester lining system, this vessel was restored with a protective interior barrier designed for long-term service.

This project highlights our expertise in:

• Proper surface preparation

• Using chemically resistant lining systems

• Addressing corrosion before it becomes a larger failure

• Providing long-term protection rather than short-term patchwork repairs

Why Choose TK Industrial Services Inc.

TK Industrial Services provides industrial surface preparation, sandblasting, coating, and lining services for clients who need reliable performance in demanding environments. We understand that successful tank lining work depends on more than just product application, it depends on correct preparation, experienced workmanship, and systems matched to service conditions.

We help clients protect critical assets through:

• Abrasive blasting

• Industrial coating application

• Tank and vessel lining systems

• Corrosion mitigation

• Chemical-resistant protective systems

• Industrial restoration and rehabilitation

Applications for Similar Lining Systems

This type of lining system may be suitable for a range of industrial assets, including:

• Chemical tanks

• Process vessels

• Containment structures

• Industrial storage equipment

• Corrosion-prone steel assets exposed to harsh chemicals
